ToggleAn In-Depth Exploration of the Different Types of Primary Memory
Primary memory (main memory or internal memory) is a very important component in the world of computers. It’s where data and instructions are stored, helping the processor work quickly.
So basically, primary memory comes in various types, and each type has its own unique quality.

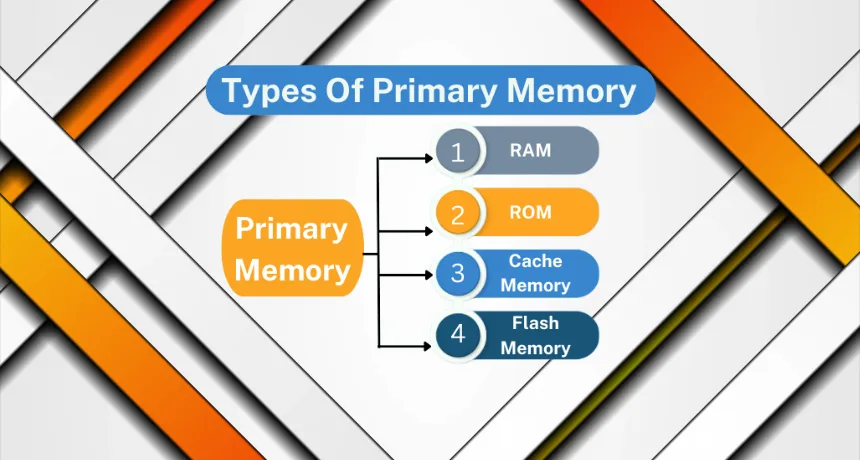

Primary memory (Main Memory) divides into Four types –
1) Random Access Memory (RAM)
2) Read-Only Memory (ROM)
3) Flash Memory
4) Cache Memory
In this blog, we will discuss primary memory, memory types, and the importance of memory in computers.
Please read this blog until the end to gain a clear understanding of the concepts. If there is any point you don’t understand, please mention your query in the comment box below.
So Let’s First Understand What Is RAM (Random Access Memory).
Random Access Memory (RAM)
Random Access Memory, also called RAM, is an important type of main memory. It is what a machine uses as its working memory. It stores the information and directions that the processor needs to do its assigned tasks.
Here’s a detailed look at RAM:-
Learn DevOps with AWS at Technogeeks. Call us on – 8600998107 for more information.
Volatility
RAM is volatile, meaning its contents are lost when the power supply is interrupted or turned off. Unlike secondary storage devices (hard drives or solid-state drives), RAM does not retain data permanently. When you turn off your computer, the data in RAM vanishes.
Access Speed
RAM makes it easy to get to info quickly. It makes computer’s working faster. Since the computer can quickly get information from RAM, programs can run quickly. Think of RAM as a workspace where the processor can easily access and manipulate data.
Types of RAM
There are different types of RAM. Each of them has its own advantages & applications. The two of the most common types are – Dynamic RAM (DRAM) and Static RAM (SRAM).
DRAM
Most computers today use dynamic RAM (the most common type of RAM). It stores each bit of data in a separate capacitor within an integrated circuit (IC). While DRAM provides higher storage density and cost-effectiveness, it requires periodic refreshing to maintain data integrity.
SRAM
Static RAM is faster and more costly than DRAM. It is using flip-flops to store data. This is for eliminating the need for refreshing. SRAM is commonly found in cache memory due to its speed and efficiency.
RAM Capacity
The amount of RAM installed in a computer system significantly impacts its performance. Computers typically have varying capacities of RAM. These can be anywhere from a few gigabytes to terabytes. With more RAM, the computer can handle more info and run more apps at the same time without slowing down.
Learn AWS at Technogeeks. Call us on – 7028710777 for more information.
Read-Only Memory (ROM)
ROM, or Read Only Memory, is a non volatile form of primary memory that stores permanent instructions and data essential for a computer’s operation. Here’s an in depth look at ROM:
Non-Volatility
Unlike RAM, ROM retains its contents even when the power supply is disconnected. It has important software & starting instructions. And system level settings that are needed for the computer to work properly.
Data Integrity
The data stored in ROM is not easily altered or modified, ensuring stability and reliability. It makes sure that the computer works the exact same way every time.
Types of ROM
There are different types of ROM, each with its own characteristics and applications:-
Programmable ROM (PROM)
PROM allows users to program the memory once. Once programmed, the data remains fixed and cannot be altered or erased.
Erasable Programmable ROM (EPROM)
EPROM can be erased and reprogrammed using ultraviolet (UV) light exposure. It allows for flexibility in updating firmware or software, but the erasing process requires physical exposure to UV light.
Electrically Erasable Programmable ROM (EEPROM)
EEPROM can be erased and reprogrammed electrically, making it more convenient compared to EPROM. It is used a lot in systems that need to be updated often, like BIOS chips and software files.
Learn more about What AWS certification is and its importance in the cloud computing world.
Cache Memory
Cache memory is a very important part of making computer systems run faster. It is a high-speed primary memory that sits between the processor and RAM, acting as a temporary storage buffer. Let’s explore all about the cache memory:
Speed and Efficiency
Cache memory operates at a much faster speed than RAM, enabling quick access to frequently used data and instructions. Cache memory speeds up a system’s performance by putting information that is often used closer to the processor. This makes it take less time on average to get information from the main memory.
Levels of Cache
Modern computer systems often employ multiple levels of cache, known as cache hierarchies. The most common levels are
- L1 (Level 1)
- L2 (Level 2)
- L3 (Level 3)
Each level provides a different capacity and proximity to the processor:-
L1 Cache
It is the smallest but fastest cache located closest to the processor. L1 cache holds a subset of the data and instructions required by the processor, minimizing access time.
L2 Cache
L2 cache is larger than L1 cache but it’s slower. It backs up the L1 cache and stores extra information that the processor might need.
L3 Cache
L3 cache, the largest but slowest among the three, acts as a secondary backup for L1 and L2 caches. It further increases the chances of finding the required data without accessing the main memory.
Cache Hierarchy
The cache memory structure is set up to make the best use of memory and keep memory delay to a minimum. Computer systems can find a good mix between volume, access speed, and cost by using a multi-level cache layout.
Technogeeks offers one of the best cloud computing courses in Pune. So, join us today to get proper knowledge & hands on experience that will make you confident enough to crack these interviews!
Flash Memory
Flash memory is a non volatile type of primary memory commonly used for long term storage in many
electronic devices. Let’s delve into the details of flash memory:-
Non-Volatility
Flash memory retains data even when the power supply is disconnected. This characteristic makes it suitable for storing files, documents, and applications in portable devices (smartphones, digital cameras, and USB drives).
Data Storage
Flash memory is a really safe way for storing the data. It has a high volume, a small size, and uses less power.
It provides users with the flexibility to save & access data on the go.
Wear Leveling
One of the key considerations with flash memory is its limited lifespan due to the finite number of write-erase cycles each memory cell can endure. Flash memory uses wear leveling methods to fix this problem.
Wear leveling makes sure that data is written to all memory cells at the same rate. This keeps some parts of the memory from wearing out too quickly and makes the memory last longer overall.
History of Memory
Here’s a table of how memory evolved from the history of computers till now.
Type | Speed | Storage Capacity | Volatile or Non-Volatile | Introduced |
Core Memory | Slow | Up to 4KB | Volatile | 1950s |
Magnetic Drum | Slow | Up to several megabytes | Non-volatile | 1950s |
Magnetic Core Memory | Fast | Up to 4MB | Volatile | 1960s |
Read-Only Memory (ROM) | Slow | Up to 8MB per chip | Non-volatile | 1970s |
Random Access Memory (RAM) | Very fast | Up to 256GB per chip | Volatile | 1970s |
Cache Memory | Very fast | Up to 16MB per chip | Volatile | 1980s |
Register Memory | Very fast | Up to 32 registers | Volatile | 1980s |
Static RAM (SRAM) | Very fast | Up to 16MB per chip | Volatile | 1980s |
Dynamic RAM (DRAM) | Fast | Up to 256GB per chip | Volatile | 1990s |
Flash Memory | Fast | Up to several terabytes | Non-volatile | 1990s |
Solid-State Drive (SSD) | Very fast | Up to several terabytes | Non-volatile | 2000s |
Cloud Storage | Varies | Up to unlimited | Non-volatile | 2000s |
Key Points
I hope you now understand the different types of primary memory and each of their individual role in saving our precious data. Here are some key points to take from this blog article:-
- Vital Role: Primary memory is crucial for fast data and instruction access.
- Types: RAM, ROM, cache memory, and flash memory.
- Distinct Characteristics: Each type has unique traits & uses.
- Efficiency and Capabilities: Contribute to modern computing device effectiveness.
FAQ’s
What are the three 3 main types of memory in a computer?
Three main types of computer memory:
1) RAM (Random Access Memory) for temporary data storage
2) ROM (Read-Only Memory) for permanent data
3) Cache for quick data access.
What are the types of primary and secondary memory?
Primary memory includes RAM for fast data access, while secondary memory includes storage devices like hard drives and SSDs for long-term data storage.
Why is RAM and ROM called primary memory?
RAM and ROM are called primary memory because RAM stores data temporarily for fast access, and ROM holds essential system instructions.
Which memory is known as volatile memory?
RAM is known as volatile memory because it loses data when the computer is powered off or restarted.
